Feature
- For ADSL (*1)
- Two or more points can be connected.
- It is possible to use it together with the NAT function.
- パケットフィルタ機能
Usage
- Construction of network in low-cost, convenient enterprise that uses the
Internet.
- Connection between headquarters, branch office, and office (Do not adjust to the
connection of a large-scale network).
Processing performance
- 880kbps (The encryption is used).
- 1336kbps(The encryption use is not done. )
LAN is connected, and it measures it by the file transfer by the FTP.

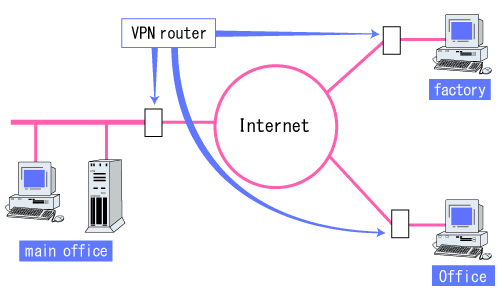

構成例
As for one point, it is necessary to allocate either of fixation and global Internet
Protocol address.
Specification
- External interface
- 10BASE-T ２ port
- Case size
- 約93×91×30（mm）
- Weight
- About316g
- Power supply
- ＡＣ１００Ｖ (AC adaptor attachment)
- Power consumption
- 6W at the maximum（It is usual; is two or threeW at the time of the use）
- Use environment
- There must be neither 0〜40℃ nor a be dewy.
Release
Sale in December, 2001
※ (*1) It is likely not to correspond according to the provider.
